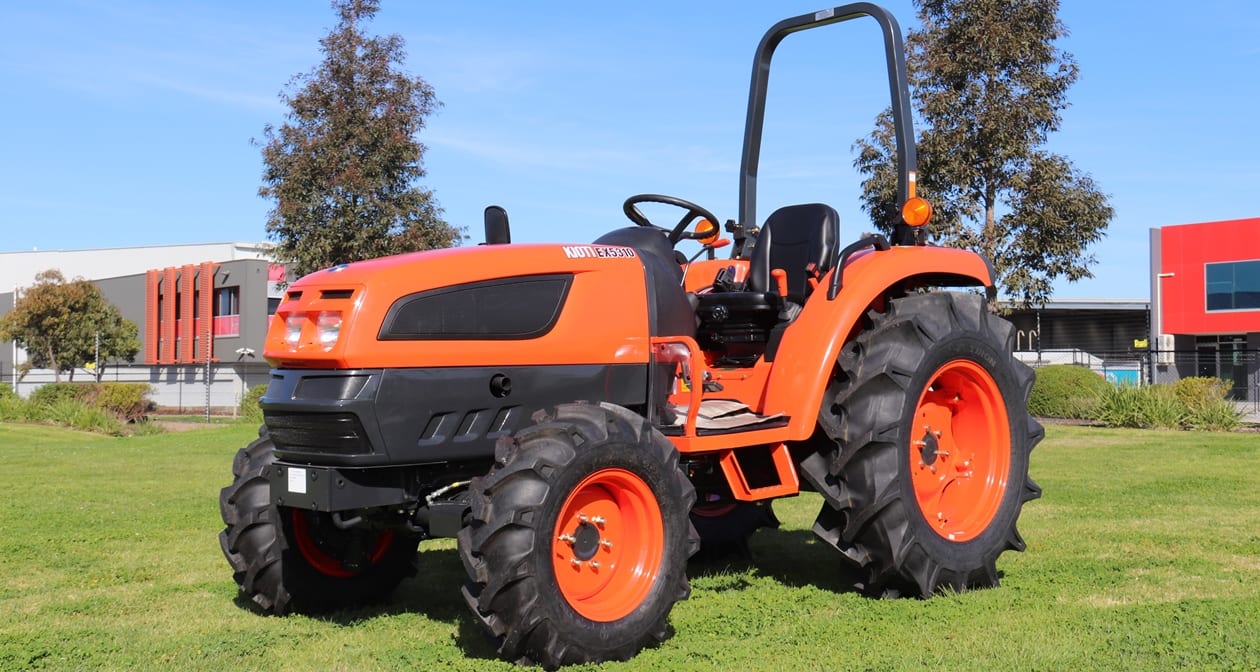

KIOTI NEW EX Series Overview

Kioti’s new powerful ROPS tractor. It comes with a powerful 53hp or 58hp engine, Synchro Shuttle Transmission, 12 x 12 Speed Transmission, 62.4 LPM Hydraulic Pump Flow, Auto PTO, 540 – 750 – 1000 PTO Speeds and much more.

EX5310 | EX5810
EX5310: 4B243DM-C1 | 53hp @2600 rpm Wet Disk Type
EX5810: 4B243DTM-C | 58hp @2600 rpm
2435cc Displacement OPERATOR ENVIRONMENT
45 Litre Fuel Tank Capacity Front Work Lights with Indicators / Brake Lights
Step Through Platform
TRANSMISSION  Under Bonnet Muffler
12×12 Synchro Mesh Comfort Seat with Seat Belt
Dry Single Clutch Foldable ROPS
Rear Differential Lock
4 Wheel Drive TRAVEL SPEEDS
  Speed Range 1.5-27.9 km/h
Tandem Gear Hydraulic Pump   DIMENSIONS
Manual Linkage Controll   Overall Length incl. 3PL       3317mm
62.4 l / min Total Flow Ovarall Height inc ROPS      2550mm

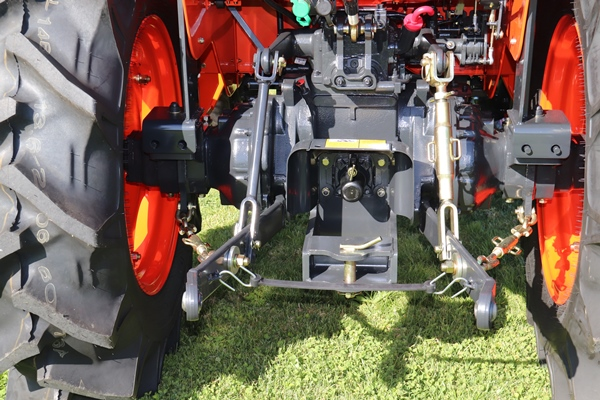

CAT 1 Three Point Linkage Overall Width min tread       1675mm
1,131 kg Max Rear Lift Capacity 610mm behind Lift Wheelbase                                1919mm
Power Steering Min Ground Clearance          405mm
2x Rear Remotes Weight                                       1790kg
Hydraulic Independent 540-750-1000 rpm EX5310
  Front Ag 8.6-16
Rear Ag 13.6-26
  Front Ag 9.5-16
Rear Ag 13.6-26
   *NOTE: The specifications are subject to change for the purpose of improvement without any notice

EX 5310

EX5310 Kioti

EX 5310 ROPS

EX 5810 (5310 model)

EX 5810 ROPS

EX 5810 ROPS (2) (1)

EX 5810 ROPS

EX 5810 ROPS
