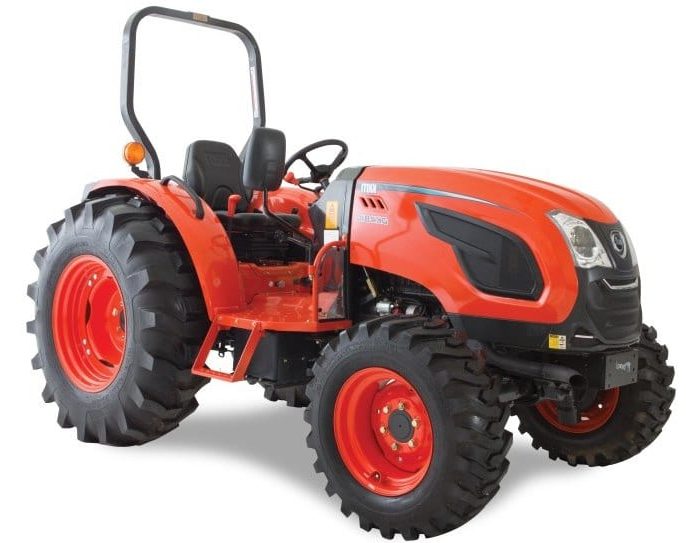

KYOTI DK Series Overview

This NEW DK Series comes in 48-53-58hp and is one of the most valuable compact tractors on the market.

With its innovative design, smooth transmission and improved performance to suit a range of farming needs and property sizes.

DK Series Compact Tractors
Models DK4810 | DK5310 | DK5810
ENGINE BRAKES
Daedong 4B243DTL-A1 Wet Disk Type
Liquid Cooled 4 Cylinder Diesel
2435 cc Displacement OPERATOR ENVIRONMENT
48-53-58hp @ 2600 RPM Front Work Lights with Indicators/Brake Lights
45 Litre Fuel Tank Capacity Step Through Platform
Under Bonnet Muffler
TRANSMISSION Comfort Seat with Seat Belt
8×8 Synchro Shuttle Foldable ROPS
Dry Single Clutch
Rear Differential Lock TRAVEL SPEEDS
4 Wheel Drive Speed Range 2.17-27.9 km/h
HYDRAULICS & LINKAGE DIMMENSIONS
Tandem Gear Hydraulic Pump Overall Length inc 3PL                 3157mm
Manual Linkage Control Overall Height inc ROPS              2246mm
55.1 I/min Total Flow Overall Width min tread               1596mm
Category 1 Three Point Linkage Wheelbase                                    1810mm
1,232 kg Max Rear Lift Capacity 610mm Behind Lift Min Ground Clearance                  368mm
Power Steering Weight                                           1605kgs
POWER TAKE OFF TYRES
Hydraulic Independent 540 – 750 rpm PTO Industrial Tyres R4          Front  10.5 – 16
                                         Rear   14.9 – 24
   *NOTE: The specifications are subject to change for the purpose of improvement without any notice
