KIOTI CS Series 2610 Overview

The KIOTI CS2610 has been specially designed for home owners that do their own yard work anything from mowing to mulching or digging with its optional backhoe.

*NOTE: The specifications are subject to change for the purpose of improvement without any notice

ENGINE FRONT AXLE

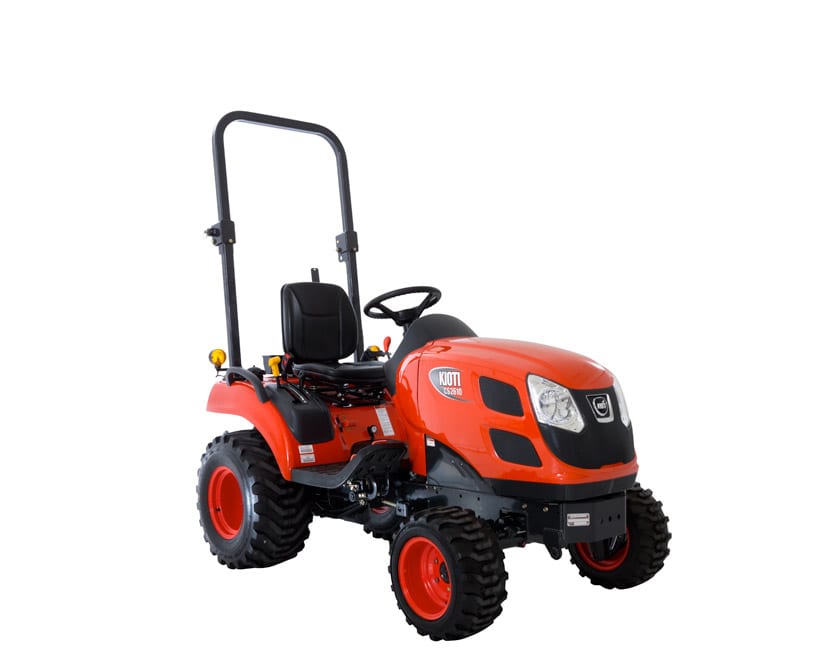

CS2610 Sub-Compact Tractor
Daedong S77SL Power Steering
Liquid Cooled 3 Cylinder Diesel
1131cc Displacement OPERATOR ENVIRONMENT
26 HP @ 3000 rpm Step Through Platform
Illuminated Instrument Panel
TRANSMISSION 12volt Power Outlet
HST High Back Seat
Infinite
4WD
DIMENSIONS
POWER TAKE OFF Overall Length  2493mm
540 rpm Rear PTO Speed Overall Height  2493mm
Standard Mid PTO Overall Width 1181mm
Wheelbase 1400mm
HYDRAULICS & LINKAGE Ground Clearance 162mm
24.6 l/min Total Flow Total Weight 675kgs
318Kg Rear Lift Capacity Fuel Capacity 25.5 Litres
BRAKES TYRES
Wet Disc Brakes Front 18×8.5-10 / Rear 26×12.00-12
*NOTE: The specifications are subject to change for the purpose of improvement without any notice

View the latest Kioti CS series Brochure
